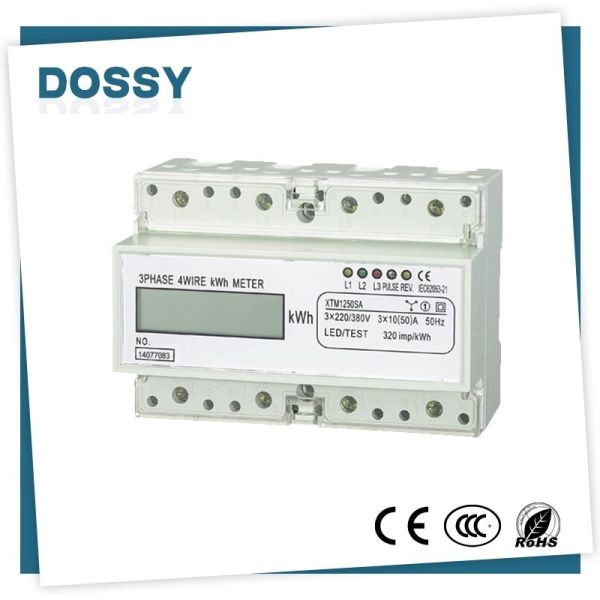

China professional manufacture Stabile three phase din rail energy meter

Product Categories

Yueqing Dongxin Motor Co.,LTD

Contact Now

China professional manufacture Stabile three phase din rail energy meter

Name: China professional manufacture Stabile three phase din rail energy meter
Brand: DOSSY
Price: 15 USD

Quality China professional manufacture Stabile three phase din rail energy meter for sale

Brand Name : DOSSY

Model Number : DS1250SA

Certification : CCC CE

Place of Origin : China

MOQ : 1pcs

Price : USD15~25$/pcs

Payment Terms : Western Union, L/C, T/T

Supply Ability : 10000 pcs per week

Packaging Details : ctns

Display Type : Digital Only

Phase : Three Phase

Measuring Energy : 1.5(6), 3(6), 5(30), 10(50), 15(90), 20(100), 5(40). 5(100)

Accuracy Class : Class1/class2

Output Voltage : 100/57.5V/380/220V

Operating Temperature : -25 ~+55

Dimensions : Standard Size

Contact Now

Product Details

China professional manufacture Stabile three phase din rail energy meter

Drawing and size

China professional manufacture Stabile three phase din rail energy meter

Main Technical Data

Main technical data
Name	Type	Accuracy	Rated voltage(V)	Rated current(A)
Three phase four wire active energy electronic type Watt-hour meter	DS1250SA	Class 1	3x380/220V 3x100/57.5V	1.5(6), 3(6), 5(30), 10(50), 15(90), 20(100), 5(40). 5(100)
		Class 2
Three phase three phase active energy electronic type Watt-hour meter	DS1250SA	Class 1	3 x 100V 3 x 380V
		Class 2

FUNCTION AND FEATURES

1. May select 35mm DIN rail installation and installation on the board.
2. 7 digits LCD display.
3. Impulse output when no power, complying with standard DIN43864.

PRODUCT BRIEF INTRODUCTION

Type DS1250SA three phase DIN rail watt-hour meter is a kind of new style three phase

electronic watt-hour meter, the meter completely accord with relevant technical requirements

of class 1 and class 2 single phase energy meter stipulated in National standard GB/T17215.321-2008

and international standard iEC61036, it can accurately and directly measure active

energy consumption from three phase AC electricity net.

it can display total energy consumption by step type impulse register display,

it has following features: Good reliability, small volume, light weight,

specious nice appearance,convenient installation, etc.
